150w Constant Current Led Power Supply

Product Description

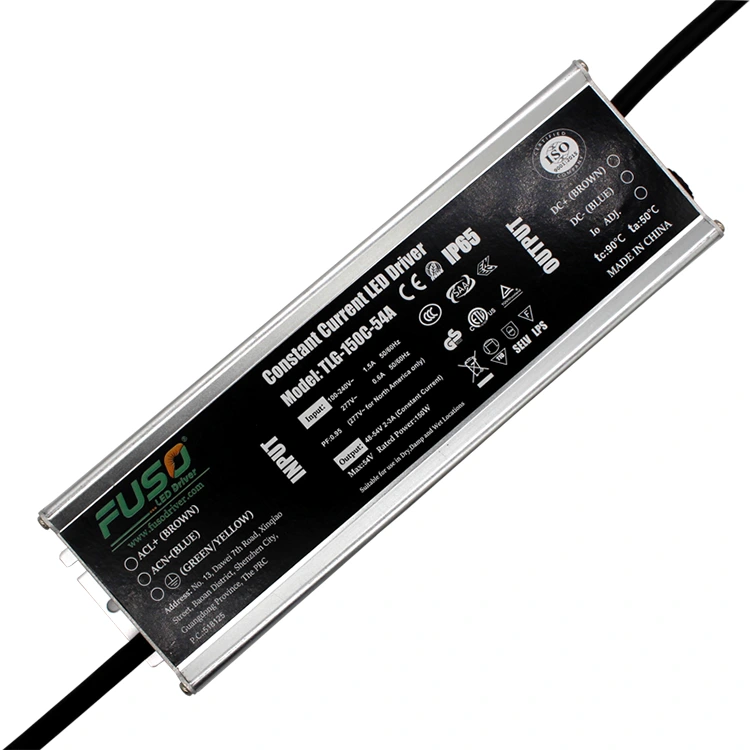

150w Constant Current Led power supply

The TLG-150C-54A 150W constant current LED power supply is designed for efficiency, featuring input AC100-277V, output voltage of 48-54V, and a robust 5-year warranty. Fuso has been at the forefront of LED power supply manufacturing for 18 years, offering tailored solutions to meet specific client demands. With a strong presence in European, American, Asian, and Australian markets, we welcome long-term collaborations.

Product Introduction of the 150w Constant Current Led power supply

Designed for durability and efficiency, the TLG-150C-54A 150w Constant Current LED Power Supply is an ideal solution for modern LED lighting systems. Its isolated structure ensures reliability, while features like over-temperature, over-voltage, and short-circuit protection provide peace of mind. The fully enclosed silicone seal and all-aluminum housing deliver IP67-rated waterproof and dustproof protection, making it suitable for indoor and outdoor environments. With compliance to CE, RoHS, TUV, UL, ETL, GS, CCC, SAA, and explosion-proof certifications, it meets stringent global standards.

Backed by 18 years of experience, Fuso specializes in crafting high-quality, customizable LED power supplys. This power supply serves various applications, including LED high bay, floodlights, street lights, tunnel lights, tri-proof lights, and landscape lighting. Its cost-effective design and global reach make it the go-to choice for customers seeking reliability and innovation. Partner with Fuso to enhance your lighting projects today!

150w Constant Current Led power supply

Product Parameter (Specification) of 150w Constant Current led power supply

SPECIFICATION：

MODEL		TLG-150C-30A	TLG-150C-36A	TLG-150C-42A	TLG-150C-48A	TLG-150C-54A

INPUT	VOLTAGE RANGE	100-305VAC	100-305VAC	100-305VAC	100-305VAC	100-305VAC
	FREQUENCY RANGE	47-63Hz
	POWER FACTOR	PF≥0.98/100VAC, PF≥0.95/220VAC, PF≥0.92/277VAC @full load
	EFFICIENCY	89.00%	89.50%	90.00%	91.00%	92.00%
	AC CURRENT	1.5A/ 115VAC / 0.7A1 230VAC / 0.6A1277VAC
	INRUSH CURRENT	25Amax.@Full Load,230VAC,Cold Start
	CIRCUIT BREAKER	2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	<0.75mA / 277VAC
OUTPUT	Output Voltage	24-30VDC	30-36VDC	36-42VDC	42-48VDC	48-54VDC
	Output Current	3-4.5A	3-4.5A	3-4.5A	2.5-3.2A	2.5-3.2A
	Current Accuracy	Less than or equal to 5.0% max. @rated current
	Line Regulation	±3%
	Load Regulation	Less than or equal to 5% @Full Load,90-264VAC
	Hold-up Tine	10Ms Min
	Ripple & Noise(max) Note.2	20% (Pk-Pk)
PROTECTION	Over Load Protection	Protection type: Auto recovery
	Over Voltage Protection	Protection type: Auto recovery
	Short circuit Protection	Protection type: Hiccup, Auto recovery
	OVER TEMPERATURE	Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT	WORKING TEMP	Ta=-40℃…+90℃(Refer to output load derating curve)
	MAX. CASE TEMP	Tc=+90℃
	WORKING HUMIDITY	20~95% RH non-condensing
	STORAGE TEMP	0-25℃…+80℃
	Humidity	20-90%RH
	Life Time	30000Hrs@Full Load,230VAC,Tc=75℃
	VIBRATION	10-500Hz,2G10min./1cycle, 60min.eachalong X,Y,Zaxes

Product Details of 150w Constant Currentled power supply

150w led driver size

Equipment & instruments

Production Process

Product Applications of 150w Constant Current led power supply

150w Constant Current led power supply Applications

Product Packaging and Shipping

150w Constant Current Led power supply has a strong packaging design, it will not be worn or broken during transportation, which can ensure the product reach your hand safely.

Container Loading&Shipment

Installation Precautions:

1. Please follow the correct input voltage range for installation;

2. Make sure AC input line, DC output line, DIM signal line connect correctly.

FAQ

1.Are you a factory or trading company?
We are a factory, we provide ODM& OEM services.
2.What is your main product line is made?
We mainly produce constant current led power supply,constant voltage led power supply, and dimmable led power supply

3. You have the ability to do independent research and development?
The core members of our engineering department have 12-18 years in the LED field, who can give more professional and reliable advice and solution and we have the R&D ability to make our products competitive. We also collect regularly customer feedback, products improvement and new product requirement. We also hold monthly new product launches.
4. What certificates you have?
UL, ENEC, TUV, CE, RoHS, CB, SAA, KC, PSE, BIS and CCC certifications etc.
5.What is your production capacity?
5,0000-10,000pcs per month
6.What is the warranty?
Most of our products are 5 years warranty.
7.How about the delivery time ?
Delivery time for sample:3-5days after get your samples request and samples charge.
Delivery time for mass production: 10-18days after order confirmed after receiving buyer's deposit
8.How do you handle defects?
1/1 replacement of defects within the warranty period.
9.How about the Package & Product design?
Based on factory original box,original design on product with neutral laser and label,original package for export carton.If need your mark on products or packing, please tell us, we can do it for you.
