High PF 100w Constant Voltage Led Driver

The FUSO TLG-100V-B is a high-performance constant voltage power supply unit that offers a robust 100-watt output with an input voltage range of 100-305V, making it versatile for various power systems. As the professional manufacture, we would like to provide you High PF 100w Constant Voltage Led Driver. And we will offer you the best after-sale service and timely delivery.

Power Level: 100W
AC Input Range:100~305V
Surge Protection: LN-PE: 6KV, L-N 4KV
IP Rating: IP67
Dimming: 0-10v/ PWM/Resistor/Timing

Send Inquiry PDF DownLoad

Product Description

High PF 100w Constant Voltage Led Driver

The FUSO TLG-100V-B is a high-performance constant voltage power supply unit that offers a robust 100-watt output with an input voltage range of 100-305V, making it versatile for various power systems. This unit is designed to provide a stable 24V output, ensuring reliable operation for applications such as LED lighting and other devices that require a consistent voltage supply. The TLG-100V-B is not only powerful but also built to withstand the elements with its IP67 rating.The unit's high-efficiency design ensures minimal power loss, contributing to energy savings and a longer lifespan for the power supply. Advanced protection features are also integrated, including Over Current Protection (OCP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP), which safeguard the connected equipment from potential damage. The FUSO TLG-100V-B's wide operating temperature range allows it to perform effectively in both cold and hot conditions, making it a dependable choice for a wide array of applications where a reliable and efficient power source is essential.

Product Introduction of High PF 100w Constant Voltage Led Driver

The FUSO TLG-100V-B High PF 100w Constant Voltage Led Driver is a powerful 100W power supply unit designed for a range of lighting applications. This model is equipped with a 0/1-10V dimming function, allowing for precise control over lighting intensity, which is essential for creating the desired ambiance in various settings. Its IP67 rating ensures that the TLG-100V-B is completely protected against dust and water ingress, making it suitable for outdoor use and in environments where water resistance is a must.The unit accommodates a wide input voltage range of 100-305V, ensuring compatibility with diverse power systems. It offers stable output voltage options of both 12V and 24V, providing flexibility to meet different lighting requirements. The TLG-100V-B is ideal for applications such as LED wall washers, LED neon tubes, and LED strip lights, where reliability and performance are crucial. This power supply unit is a testament to FUSO's commitment to delivering high-quality lighting solutions that are both versatile and robust.

High PF 24V 80w Constant Voltage Led driver

Product Parameter (Specification) of High PF 100w Constant Voltage Led Driver

SPECIFICATION

MODEL

TLG-80V-12B

TLG-80V-24B

TLG-80V-36B

TLG-80V-42B

TLG-80V-54B

INPUT

Voltage Range

100-305VAC

Frequency Range

47-63Hz

Power Factor

PF≥0.98/100VAC, PF≥0.95/220VAC, PF≥0.92/277VAC @full load

Efficiency

85.00%

87.00%

88.00%

90.00%

91.00%

AC Current

0.7A/ 115VAC / 0.35A/230VAC / 0.3A/277VAC

Inrush Current

25Amax.@Full Load,230VAC,Cold Start

Circuit Breaker

2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC

Leak agel Current

<1mA / 277VAC

OUTPUT

DC voltage

12VDC

24VDC

36VDC

42VDC

54VDC

Output rated current

8-12VA

14.4-24VA

21.6-36VA

25.2-42A

32.4-54A

Rated power

80W

Ripple & Noise

120mVp-p

150mVp-p

200mVp-p

300mVp-p

Voltage adjustment range

10.5-14V

22-27V

33-40V

40-46V

49-58V

Current adjustment range

1.5-2.5A

0.75-1.25A

0.5-0.84A

0.4-0.72A

0.3-0.56A

Voltage accuracy

士 2.0%

士 1.0%

Linear adjustment rate

士 1.0%

Load regulation ratio

士 1.5%

Start, rise time

800ms,80ms/115VAC，500ms,50ms/230VAC@full load

Hold time (typ.)

30ms/115VAC，230VAC

PROTECTION

Over Current

95-110%, constant current limit, automatic recovery after abnormal load conditions are removed

Over Voltage Protection

16-18V

28-35V

41-49V

48-58V

59-68V

Turn off output voltage, restart recovery

Short circuit Protection

Hiccup mode, which can be automatically restored after the abnormal load condition is removed

Over Temperature

Turn off output voltage, restart recovery

ENVIRO
NMENT

Working Temp

Tcase=-40℃…+70℃

Max. Case Temp

Tcase= +90℃

Working Humidity

20-95% RH,No condensation

Storage Temp

-40...+80℃, 10...95% RH,No condensation

Vibration

10-500Hz,2G10min./1cycle,60min.eachalongX,Y,Zaxes

SAFETY &
EMC

Safety Standards

Conform UL8750(type”TL”)，CSA C22.2 No. 250.0-08，BS EN/EN/AS/NZS 61347-1，
BS EN/EN/AS/NZS 61347-2-13，independent，GB19510.1，GB19510.14，
EAC TPTC 004，KC61347-1，IP67

Withstand Voltage

I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC

Insulation impedance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH

Electromagnetic
Compatibility

Conform BS EN/EN55015, BS EN/EN61000-3-2 Class C (@Load>60%) ;
BS EN/EN61000-3-3,GB/T 17743, GB17625.1, EAC TPTC 020

Electromagnetic compatibility
immunity

Conform BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547,Light industry standards
(Surge immunity: wire-to-ground4KV,Line-to-line:2KV), EAC TPTC 020

OTHERS

MTBF

>3000K hrs. MIL-HDBK-217F (25℃)

Dimension

(L) 200 mm*(W) 60.5 mm*(H) 38.8 mm

NOTE

1: Please refer to "LED Module Driving Method".
2: Ripple and noise measurement method: Use a 12 "twisted pair, and the terminals must be connected in parallel with 0.1 uf and 47uf capacitors, and measure at 20MHZ bandwidth.
3: Type B only adjustable (through internal potential adjustment).
4: Accuracy: including setting error, linear adjustment rate, and load adjustment rate.
5: Unless otherwise specified, all specifications are measured at 230VAC input, rated load, and 25 °C ambient temperature.
6: The power supply is regarded as a component used in combination with the terminal equipment. Because the EMC is affected by the entire device, the terminal equipment manufacturer needs to re-confirm the EMC of the entire device.

Product Details of High PF 100w Constant Voltage Led Driver

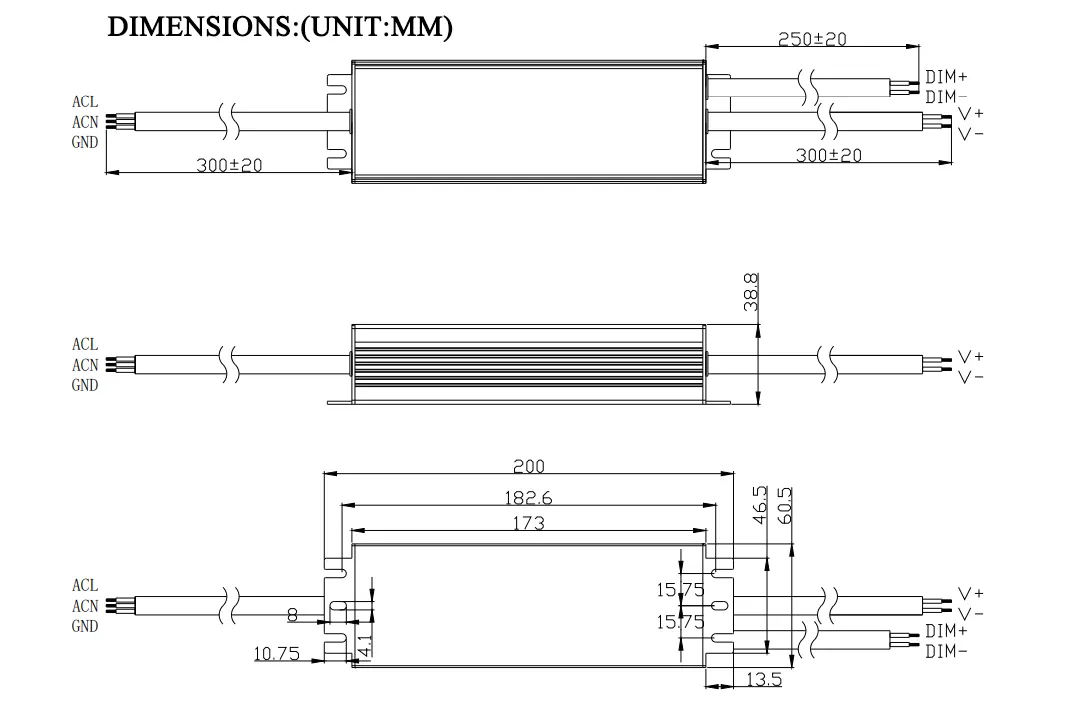

Size of 12v 80w constant voltage led driver
