High PF 12v 150w Constant Voltage Led Driver

Product Description

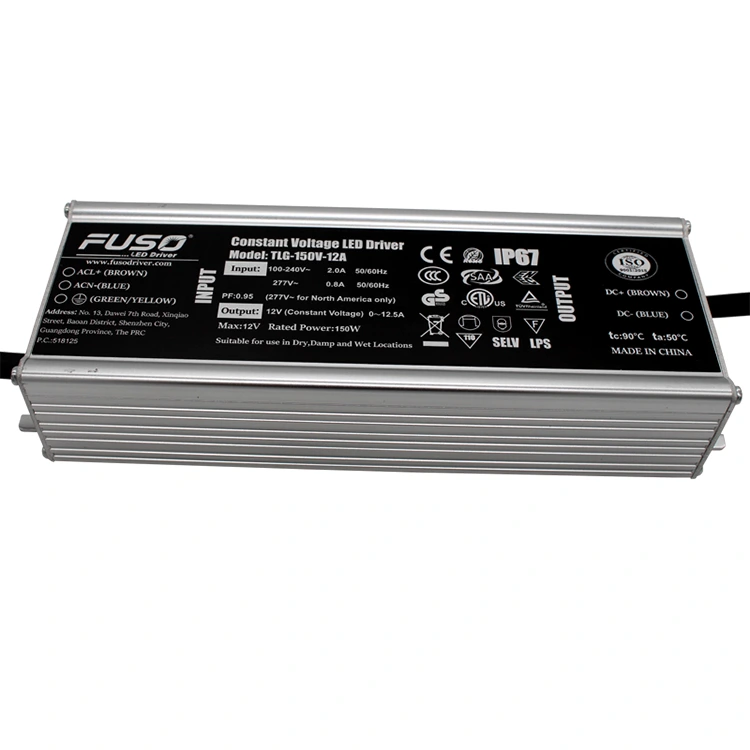

High PF 12v 150w Constant Voltage Led Driver

The TLG-150V-12A high PF 12V 150W constant voltage LED driver offers reliable performance with an input range of AC100~277V and a stable 12V output. With a high power factor exceeding 0.95, this driver reduces the reactive current draw from the grid, making it highly energy-efficient. High PF 12V 150W constant voltage LED driver is backed by a 5-year warranty to ensure long-lasting durability. For 18 years, Fuso has been a leading manufacturer of high PF LED drivers, catering to clients worldwide with our extensive expertise and ability to customize products. We're excited to partner with you in China.

Product Introduction of high PF 12v 150w constant voltage Led Driver

The TLG-150V-12A high pf 12v 150W constant voltage LED driver is engineered with a high power factor (PF > 0.95) for maximum energy efficiency and long-term reliability. It features built-in over-voltage, over-temperature, and short-circuit protection for enhanced safety. The high pf 12v 150w constant voltage led driver also offers the flexibility of Triac or 0-10V dimming options, available upon request. Its rugged all-aluminum casing and IP67-rated waterproof and dustproof design ensure it performs well in all weather conditions. The product complies with CE, ROHS, TUV, UL, ETL, GS, CCC, and SAA certifications, ensuring its global compliance. Fuso’s 18 years of experience in LED driver production guarantees high-quality, customizable solutions for various lighting applications worldwide.

High PF 12v 150w Constant Voltage Led Driver

Product Parameter (Specification) of high PF 12v 150w Constant Voltage Led Driver

SPECIFICATION

MODEL		TLG-150V-12A	TLG-150V-24A	TLG-150V-36A	TLG-150V-42A	TLG-150V-54A

INPUT	Voltage Range	100-305VAC
	Frequency Range	47-63Hz
	Power Factor	PF≥0.98/100VAC, PF≥0.95/220VAC, PF≥0.92/277VAC @full load
	Efficiency	85.00%	87.00%	88.00%	90.00%	90.50%
	AC Current	1.3A/ 115VAC / 0.65A/230VAC / 0.55A/277VAC
	Inrush Current	25Amax.@Full Load,230VAC,Cold Start
	Circuit Breaker	2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
	Leakagel Current	<1mA / 277VAC
OUTPUT	DC voltage	12VDC	24VDC	36VDC	42VDC	54VDC
	Output rated current	8-12V	14.4-24VA	21.6-36VA	25.2-42A	32.4-54A
	Rated power	150W	150W	150W	150W	150W
	Ripple & Noise	120mVp-p	150mVp-p	200mVp-p	300mVp-p	300mVp-p
	Voltage adjustment range	10.5-14V	22-27V	33-40V	40-46V	49-58V
	Current adjustment range	1.5-2.5A	0.75-1.25A	0.5-0.84A	0.4-0.72A	0.3-0.56A
	Voltage accuracy	士 2.0%	士 1.0%	士 1.0%	士 1.0%	士 1.0%
	Linear adjustment rate	士 1.0%	士 1.0%	士 1.0%	士 1.0%	士 1.0%
	Load regulation ratio	士 1.5%	士 1.5%	士 1.5%	士 1.5%	士 1.5%
	Start, rise time	800ms,80ms/115VAC，500ms,50ms/230VAC@full load
	Hold time (typ.)	30ms/115VAC，230VAC
PROTECTION	Over Current	95-110%, constant current limit, automatic recovery after abnormal load conditions are removed
	Over Voltage Protection	16-18V	28-35V	41-49V	48-58V	59-68V
		Turn off output voltage, restart recovery
	Short circuit Protection	Hiccup mode, which can be automatically restored after the abnormal load condition is removed
	Over Temperature	Turn off output voltage, restart recovery
ENVIRO NMENT	Working Temp	Tcase=-40℃…+70℃
	Max. Case Temp	Tcase= +90℃
	Working Humidity	20-95% RH,No condensation
	Storage Temp	-40...+80℃, 10...95% RH,No condensation
	Vibration	10-500Hz,2G10min./1cycle,60min.eachalongX,Y,Zaxes
SAFETY & EMC	Safety Standards	Conform UL8750(type”TL”)，CSA C22.2 No. 250.0-08，BS EN/EN/AS/NZS 61347-1， BS EN/EN/AS/NZS 61347-2-13，independent，GB19510.1，GB19510.14， EAC TPTC 004，KC61347-1，IP67


	Withstand Voltage	I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
	Insulation impedance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
	Electromagnetic Compatibility	Conform BS EN/EN55015, BS EN/EN61000-3-2 Class C (@Load>60%) ; BS EN/EN61000-3-3,GB/T 17743, GB17625.1, EAC TPTC 020


	Electromagnetic compatibility immunity	Conform BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547,Light industry standards (Surge immunity: wire-to-ground4KV,Line-to-line:2KV), EAC TPTC 020


OTHERS	MTBF	>3000K hrs. MIL-HDBK-217F (25℃)
	Dimension	(L) 210 mm(W) 68 mm(H) 40 mm
NOTE	1: Please refer to "LED Module Driving Method". 2: Ripple and noise measurement method: Use a 12 "twisted pair, and the terminals must be connected in parallel with 0.1 uf and 47uf capacitors, and measure at 20MHZ bandwidth. 3: Type B only adjustable (through internal potential adjustment). 4: Accuracy: including setting error, linear adjustment rate, and load adjustment rate. 5: Unless otherwise specified, all specifications are measured at 230VAC input, rated load, and 25 °C ambient temperature. 6: The power supply is regarded as a component used in combination with the terminal equipment. Because the EMC is affected by the entire device, the terminal equipment manufacturer needs to re-confirm the EMC of the entire device.

Product Details of high PF 12v 150w Constant Voltage Led Driver

150w 12v led driver size

Equipment & instruments

Production Process

Product Applications of high PF 12v150w Constant Voltage Led Driver

high PF 12v150w Constant Voltage Led Driver Applications

Product Packaging and Shipping

High PF 150w Constant voltage Led Driver has a strong packaging design, it will not be worn or broken during transportation, which can ensure the product reach your hand safely.

Container Loading&Shipment

Installation Precautions:

1. Please follow the correct input voltage range for installation;

2. Make sure AC input line, DC output line, DIM signal line connect correctly.

FAQ

1.Are you a factory or trading company?
We are a factory, we provide ODM& OEM services.
2.What is your main product line is made?
We mainly produce constant current led driver ,constant voltage led driver, and dimmable led driver

3. You have the ability to do independent research and development?
The core members of our engineering department have 12-18 years in the LED field, who can give more professional and reliable advice and solution and we have the R&D ability to make our products competitive. We also collect regularly customer feedback, products improvement and new product requirement. We also hold monthly new product launches.
4. What certificates you have?
UL, ENEC, TUV, CE, RoHS, CB, SAA, KC, PSE, BIS and CCC certifications etc.
5.What is your production capacity?
5,0000-10,000pcs per month
6.What is the warranty?
Most of our products are 5 years warranty.
7.How about the delivery time ?
Delivery time for sample:3-5days after get your samples request and samples charge.
Delivery time for mass production: 10-18days after order confirmed after receiving buyer's deposit
8.How do you handle defects?
1/1 replacement of defects within the warranty period.
9.How about the Package & Product design?
Based on factory original box,original design on product with neutral laser and label,original package for export carton.If need your mark on products or packing, please tell us, we can do it for you.
