High Pf 12v 80w Constant Voltage Led Power Supply

Product Description

High PF 12v 80w Constant Voltage Led power supply

We supply high pf 12V 80w constant voltage led power supply, model TLG-80V-12A, Input AC100~277V, output 12V, rated power 80w with 5 years warranty. High Power factor > 0.95, the reactive current consumption from the grid is reduced. Fuso is a professional high PF 12V constant voltage led driver factory for 18 years, our ample experience allow us to customize various led driver for our clients. Our products covering most of European, American, Asian, Australian and worldwide market. We are looking forward to be your long term partner in china.

Product Introduction of high PF 12v 80w constant voltage Led power supply

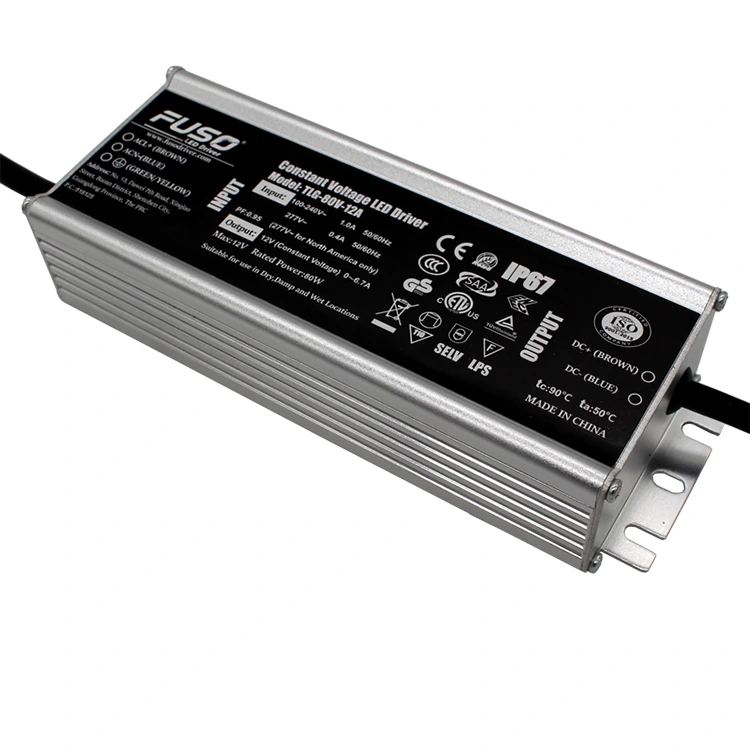

Fuso's TLG-80V-12A is a high PF (over 0.95) 80W constant voltage LED power supply, providing enhanced efficiency and reliability. This model features over-voltage, over-temperature, and short-circuit protection, ensuring safe operation in a variety of environments. For additional versatility, Triac dimming or 0-10V dimming can be added upon request. The led power supply’s all-aluminum housing and IP67 waterproof, dustproof silicone treatment make it ideal for outdoor and challenging environments. Compliant with international certifications such as CE, ROHS, TUV, UL, ETL, GS, CCC, and SAA, it is perfect for powering LED strip lights, wall washers, underwater lights, and more. With 18 years of experience, Fuso offers customized LED power supply solutions to meet your exact specifications.

High PF 12v 80w Constant Voltage Led power supply

Product Parameter (Specification) of high PF 12v 80w Constant Voltage Led power supply

SPECIFICATION

MODEL		TLG-80V-12A	TLG-80V-24A	TLG-80V-36A	TLG-80V-42A	TLG-80V-54A
INPUT	Voltage Range	100-305VAC
	Frequency Range	47-63Hz
	Power Factor	PF≥0.98/100VAC, PF≥0.95/220VAC, PF≥0.92/277VAC @full load
	Efficiency	85.00%	87.00%	88.00%	90.00%	91.00%
	AC Current	0.7A/ 115VAC / 0.35A/230VAC / 0.3A/277VAC
	Inrush Current	25Amax.@Full Load,230VAC,Cold Start
	Circuit Breaker	2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
	Leakagel Current	<1mA / 277VAC
OUTPUT	DC voltage	12VDC	24VDC	36VDC	42VDC	54VDC
	Output rated current	8-12V	14.4-24VA	21.6-36VA	25.2-42A	32.4-54A
	Rated power	80W	80W	80.25W	80.25W	80.25W
	Ripple & Noise	120mVp-p	150mVp-p	200mVp-p	300mVp-p	300mVp-p
	Voltage adjustment range	10.5-14V	22-27V	33-40V	40-46V	49-58V
	Current adjustment range	1.5-2.5A	0.75-1.25A	0.5-0.84A	0.4-0.72A	0.3-0.56A
	Voltage accuracy	士2.0%	士1.0%	士1.0%	士1.0%	士1.0%
	Linear adjustment rate	士1.0%	士1.0%	士1.0%	士1.0%	士1.0%
	Load regulation ratio	士1.5%	士1.5%	士1.5%	士1.5%	士1.5%
	Start, rise time	800ms,80ms/115VAC，500ms,50ms/230VAC@full load
	Hold time (typ.)	30ms/115VAC，230VAC
PROTECTION	Over Current	95-110%, constant current limit, automatic recovery after abnormal load conditions are removed
	Over Voltage Protection	16-18V	28-35V	41-49V	48-58V	59-68V
	Over Voltage Protection	Turn off output voltage, restart recovery
	Short circuit Protection	Hiccup mode, which can be automatically restored after the abnormal load condition is removed
	Over Temperature	Turn off output voltage, restart recovery
ENVIRO NMENT	Working Temp	Tcase=-40℃…+70℃
	Max. Case Temp	Tcase= +90℃
	Working Humidity	20-95% RH,No condensation
	Storage Temp	-40...+80℃, 10...95% RH,No condensation
	Vibration	10-500Hz,2G10min./1cycle,60min.eachalongX,Y,Zaxes
SAFETY & EMC	Safety Standards	Conform UL8750(type”TL”)，CSA C22.2 No. 250.0-08，BS EN/EN/AS/NZS 61347-1， BS EN/EN/AS/NZS 61347-2-13，independent，GB19510.1，GB19510.14， EAC TPTC 004，KC61347-1，IP67
	Withstand Voltage	I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
	Insulation impedance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
	Electromagnetic Compatibility	Conform BS EN/EN55015, BS EN/EN61000-3-2 Class C (@Load>60%) ; BS EN/EN61000-3-3,GB/T 17743, GB17625.1, EAC TPTC 020
	Electromagnetic compatibility immunity	Conform BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547,Light industry standards (Surge immunity: wire-to-ground4KV,Line-to-line:2KV), EAC TPTC 020
	OTHERS	MTBF	>3000K hrs. MIL-HDBK-217F (25℃)
	OTHERS	Dimension	(L) 180 mm(W) 62 mm(H) 36 mm
	NOTE	1: Please refer to "LED Module Driving Method". 2: Ripple and noise measurement method: Use a 12 "twisted pair, and the terminals must be connected in parallel with 0.1 uf and 47uf capacitors, and measure at 20MHZ bandwidth. 3: Type B only adjustable (through internal potential adjustment). 4: Accuracy: including setting error, linear adjustment rate, and load adjustment rate. 5: Unless otherwise specified, all specifications are measured at 230VAC input, rated load, and 25 °C ambient temperature. 6: The power supply is regarded as a component used in combination with the terminal equipment. Because the EMC is affected by the entire device, the terminal equipment manufacturer needs to re-confirm the EMC of the entire device.

Product Details of high PF 12v 80w Constant Voltage Led power supply

Size of 12v 80w constant voltage led power supply

Equipment & instruments

Production Process

Product Applications of high PF 12v 80w Constant Voltage Led power supply

high PF 12v 80w Constant Voltage Led power supply Applications

Product Packaging and Shipping

High PF 12V 80w Constant voltage Led power supply has a strong packaging design, it will not be worn or broken during transportation, which can ensure the product reach your hand safely.

Container Loading&Shipment

Installation Precautions:

1. Please follow the correct input voltage range for installation;

2. Make sure AC input line, DC output line, DIM signal line connect correctly.

FAQ

1.Are you a factory or trading company?
We are a factory, we provide ODM& OEM services.
2.What is your main product line is made?
We mainly produce constant current led driver ,constant voltage led driver, and dimmable led driver

3. You have the ability to do independent research and development?
The core members of our engineering department have 12-18 years in the LED field, who can give more professional and reliable advice and solution and we have the R&D ability to make our products competitive. We also collect regularly customer feedback, products improvement and new product requirement. We also hold monthly new product launches.
4. What certificates you have?
UL, ENEC, TUV, CE, RoHS, CB, SAA, KC, PSE, BIS and CCC certifications etc.
5.What is your production capacity?
5,0000-10,000pcs per month
6.What is the warranty?
Most of our products are 5 years warranty.
7.How about the delivery time ?
Delivery time for sample:3-5days after get your samples request and samples charge.
Delivery time for mass production: 10-18days after order confirmed after receiving buyer's deposit
8.How do you handle defects?
1/1 replacement of defects within the warranty period.
9.How about the Package & Product design?
Based on factory original box,original design on product with neutral laser and label,original package for export carton.If need your mark on products or packing, please tell us, we can do it for you.
