Product Description

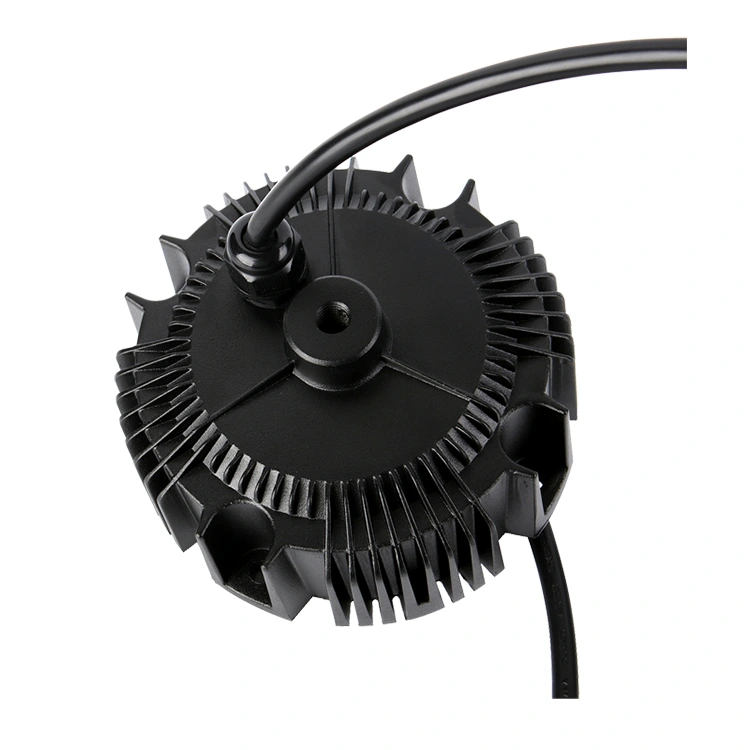

150W Customized LED driver of UFO HIGH BAY LIGHT

The VCG-150C-42A is a 150W customized led UFO High Bay light driver, expertly engineered to deliver high performance and reliability in a variety of industrial and commercial lighting applications. The customized led driver is equipped with a wide input voltage range of AC120-277V, ensuring global adaptability across different power systems. It achieves a high power factor (PF > 0.95) and over 90% efficiency, contributing to energy savings and aligning with eco-friendly, cost-effective lighting solutions. The VCG-150C-42A features a magnesium alloy design for enhanced cooling, maintaining LED junction temperatures below 85°C to extend LED life and ensure consistent performance. Its superior optical design improves light utilization and evenness, providing uniform illumination. Protection features include surge protection, safeguarding against power surges and potential damage, along with short circuit, over current, and over temperature protections. With an IP67 waterproof rating, the driver is suitable for outdoor or wet location installations. It also supports 0-10V dimming for flexible lighting control in various environments. We stand by our product with a 5-year warranty, reflecting our confidence in the VCG-150C-42A's quality and durability. This 150W customized LED driver is an excellent choice for applications requiring reliability, efficiency, and high-quality lighting, such as in warehouses, industrial areas, gymnasiums, and beyond.

Product Introduction of 150W Customized LED driver of UFO HIGH BAY LIGHT

The VCG-150C-42A is a 150W customized led UFO High Bay light driver, meticulously designed to meet the specific demands of our clients. Engineered for high performance and reliability, this driver ensures efficient lighting in industrial and commercial settings. 150W customized led driver offers a wide input voltage range of 100-305V AC, Adaptation various power systems globally, and provides a stable output voltage of 36-54V, crucial for the consistent operation of LED High Bay lights. With a high power factor (PF > 0.95), the VCG-150C-42A contributes to energy efficiency and reduces power loss, aligning with green and cost-effective lighting solutions.

The customized led driver features a magnesium alloy design for enhanced cooling, maintaining LED junction temperatures below 85°C to extend the life of the LEDs and ensure consistent performance. Its excellent optical design significantly improves light utilization and evenness, ensuring uniform illumination. The VCG-150C-42A is built to withstand high temperatures and includes surge protection, safeguarding against power surges and potential damage, with additional protections against short circuits, over current, and over temperature.

High PF 24V 80w Constant Voltage Led driver

With an IP67 waterproof rating, the driver is suitable for outdoor or wet location installations. It supports 0-10V dimming, allowing for flexible lighting control in different environments. We are confident in the quality and durability of the VCG-150C-42A, offering a 5-year warranty to our clients. The driver is compliant with international safety standards, including CE, RoHS, TUV, UL, ETL, GS, CCC, SAA, PSE, FCC, and CCC, ensuring it meets the highest quality and safety requirements globally.

FUSO Company, acclaimed for its ISO9001:2005 quality management system, leverages 18 years of production and design experience. Exporting to over 50 countries, FUSO specializes in manufacturing high-power IP65, IP67 waterproof LED drivers. Our main business is to customize a variety of LED drivers, including Dimmable Led Driver, Triac Dimmable Led Driver, Contact Current LED driver, and Constant Voltage LED driver, according to customer requirements.

The VCG-150C-42A along with FUSO's other products, is applied in a wide range of lighting solutions such as LED indoor lighting, downlights, ceiling lights, line lights, table lamps, light strips, underwater lights, underground lights, projection lights, corrugated lights, wall washers, neon tubes, architectural lighting, navigation lights, display lights, advertising lights, mirror lights, film and television lights, and stage lights. This extensive range of applications highlights FUSO's capability to address diverse lighting needs across various industries.

Product Parameter (Specification) of 150W Customized LED driver of UFO HIGH BAY LIGHT

SPECIFICATION

MODEL

VCG-150C-30A

VCG-150C-36A

VCG-150C-42A

VCG-150C-48A

VCG-150C-54A

INPUT

Voltage Range

100-305VAC

Frequency Range

47-63Hz

Power Factor

PF≥0.98/100VAC, PF≥0.95/220VAC, PF≥0.92/277VAC @full load

Efficiency

85.00%

87.00%

88.00%

90.00%

90.50%

AC Current

1.3A/ 115VAC /0.65A/230VAC

Inrush Current

25Amax.@Full Load,230VAC,Cold Start

Circuit Breaker

2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC

Leakagel Current

<1mA / 277VAC

OUTPUT

DC voltage

30VDC

36VDC

42VDC

48VDC

54VDC

Output rated current

24-30VA

30-36VA

36-42VA

40-48A

48-54A

Rated power

150W

Ripple & Noise

120mVp-p

150mVp-p

200mVp-p

300mVp-p

Voltage adjustment range

24-30V

30-36V

36-42V

40-48

48-54

Voltage accuracy

士 2.0%

士 1.0%

Linear adjustment rate

士 1.0%

Load regulation ratio

士 1.5%

Start, rise time

800ms,80ms/115VAC，500ms,50ms/230VAC@full load

Hold time (typ.)

30ms/115VAC，230VAC

PROTECTION

Over Current

95-110%, constant current limit, automatic recovery after abnormal load conditions are removed

Over Voltage Protection

24-30V

30-36V

36-42V

40-48

48-54

Turn off output voltage, restart recovery

Short circuit Protection

Hiccup mode, which can be automatically restored after the abnormal load condition is removed

Over Temperature

Turn off output voltage, restart recovery

ENVIRO
NMENT

Working Temp

Tcase=-40℃…+70℃

Max. Case Temp

Tcase= +90℃

Working Humidity

20-95% RH,No condensation

Storage Temp

-40...+80℃, 10...95% RH,No condensation

Vibration

10-500Hz,2G10min./1cycle,60min.eachalongX,Y,Zaxes

SAFETY &
EMC

Safety Standards

Conform UL8750(type”TL”)，CSA C22.2 No. 250.0-08，BS EN/EN/AS/NZS 61347-1，
BS EN/EN/AS/NZS 61347-2-13，independent，GB19510.1，GB19510.14，
EAC TPTC 004，KC61347-1，IP20

Withstand Voltage

I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC

Insulation impedance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH

Electromagnetic
Compatibility

Conform BS EN/EN55015, BS EN/EN61000-3-2 Class C (@Load>60%) ;
BS EN/EN61000-3-3,GB/T 17743, GB17625.1, EAC TPTC 020

Electromagnetic compatibility
immunity

Conform BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547,Light industry standards
(Surge immunity: wire-to-ground4KV,Line-to-line:2KV), EAC TPTC 020

OTHERS

MTBF

>3000K hrs. MIL-HDBK-217F (25℃)

Dimension

φ102 mm*(H) 26mm

NOTE

1: Please refer to "LED Module Driving Method".
2: Ripple and noise measurement method: Use a 12 "twisted pair, and the terminals must be connected in parallel with 0.1 uf and 47uf capacitors, and measure at 20MHZ bandwidth.
3: Type D only adjustable (through internal potential adjustment).
4: Accuracy: including setting error, linear adjustment rate, and load adjustment rate.
5: Unless otherwise specified, all specifications are measured at 230VAC input, rated load, and 25 °C ambient temperature.
6: The power supply is regarded as a component used in combination with the terminal equipment. Because the EMC is affected by the entire device, the terminal equipment manufacturer needs to re-confirm the EMC of the entire device.

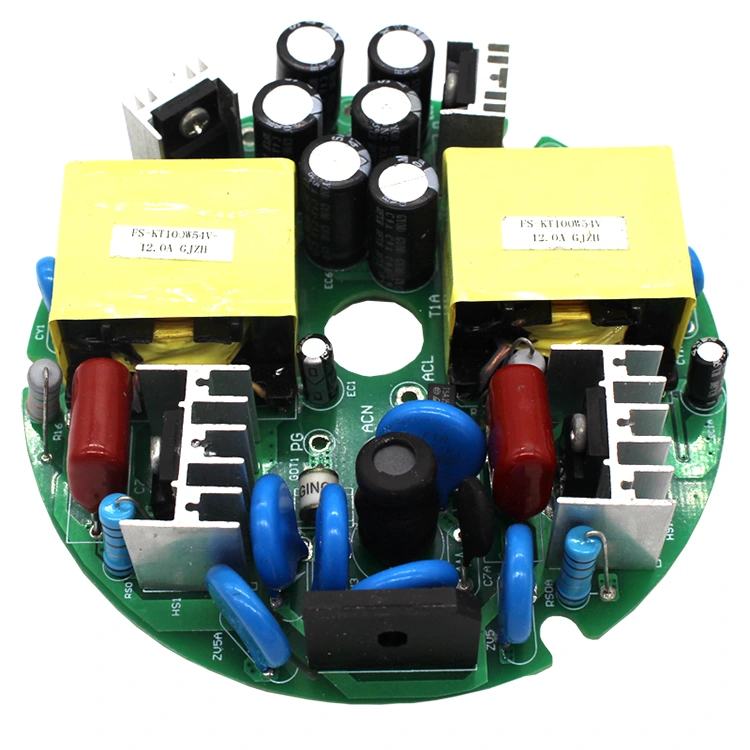

Product Details of 150W Customized LED driver of UFO HIGH BAY LIGHT

Equipment & instruments

Production Process

Product Applications of 150W Customized LED driver of UFO HIGH BAY LIGHT

Product Packaging and Shipping

150W Customized LED driver of UFO HIGH BAY LIGHT has a strong packaging design,it will not be worn or broken during transportation, which can ensure the product reach your hand safely.

Container Loading&Shipment

Installation Precautions:

1. Please follow the correct input voltage range for installation;

2. Make sure AC input line, DC output line, DIM signal line connect correctly.

FAQ

1.Are you a factory or trading company?
We are a factory, we provide ODM& OEM services.
2.What is your main product line is made?
We mainly produceconstant current led driver ,constant voltage led driver, and dimmable led driver

3. You have the ability to do independent research and development?
The core members of our engineering department have 12-18 years in the LED field, who can give more professional and reliable advice and solution and we have the R&D ability to make our products competitive. We also collect regularly customer feedback, products improvement and new product requirement. We also hold monthly new product launches.
4. What certificates you have?
UL, ENEC, TUV, CE, RoHS, CB, SAA, KC, PSE, BIS and CCC certifications etc.
5.What is your production capacity?
5,0000-10,000pcs per month
6.What is the warranty?
Most of our products are 5 years warranty.
7.How about the delivery time ?
Delivery time for sample:3-5days after get your samples request and samples charge.
Delivery time for mass production: 10-18days after order confirmed after receiving buyer's deposit
8.How do you handle defects?
1/1 replacement of defects within the warranty period.
9.How about the Package & Product design?
Based on factory original box,original design on product with neutral laser and label,original package for export carton.If need your mark on products or packing, please tell us, we can do it for you.
