Product Description

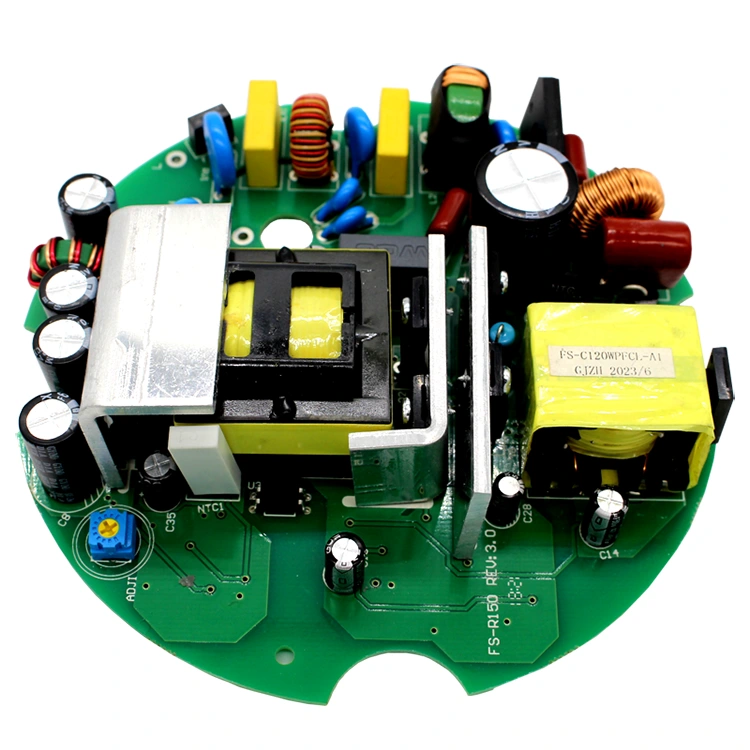

200W Customized LED driver of UFO HIGH BAY LIGHT

The VCG-200C-42A is a 200W customized led explosion-proof light driver, expertly crafted for hazardous environments where safety and reliability are paramount. With a wide input voltage range of 100-305V AC, The customized led driver ensures compatibility with global power systems. This driver boasts a high power factor (PF > 0.95) for energy efficiency and stable output voltage of 36-54V, crucial for consistent LED performance. Designed with thermal management in mind, it maintains LED junction temperatures below 85°C, extending the life of the LEDs. The VCG-200C-42A is equipped with surge protection and is IP67 rated for waterproofing, suitable for outdoor or wet installations. The customized led driver supports 0-10V dimming for flexible lighting control. FUSO, with 18 years of experience and ISO9001:2005 certification, stands behind the VCG-200C-42A with a 5-year warranty, reflecting our commitment to quality and durability.

Product Introduction of 200W Customized LED driver of UFO HIGH BAY LIGHT

The VCG-200C-42A is a 200W customized led explosion-proof light driver, expertly engineered to deliver high performance and reliability in hazardous environments prone to explosive gases or dust. This robust driver offers a wide input voltage range of 100-305V and a stable output of 36-54V, ensuring compatibility and consistency across global power systems. The customized led driver has high power factor (PF > 0.95) promotes energy efficiency and reduces power loss, supporting sustainable lighting practices.

Designed with a magnesium alloy for superior thermal management, the VCG-200C-42A keeps LED junction temperatures below 85°C, extending LED life and maintaining performance. It features comprehensive protection against high temperatures, surges, short circuits, over current, and over temperature, making it a safe choice for demanding conditions. The IP67 rating certifies its waterproof capabilities, suitability for outdoor or wet installations.

The VCG-200C-42A also supports 0-10V dimming, providing flexibility to adapt lighting to various settings and needs. FUSO Company, with an ISO9001:2005 quality management system and 18 years of experience, stands behind this driver with a 5-year warranty. Exporting to over 50 countries, FUSO specializes in high-power, waterproof LED drivers, customizing a range of LED drivers including Dimmable, Triac Dimmable, Contact Current, and Constant Voltage models to meet specific customer requirements.

The VCG-200C-42A is compliant with international safety standards such as CE, RoHS, TUV, UL, ETL, GS, CCC, SAA, PSE, FCC, and CCC, guaranteeing its quality and safety globally. This driver is a testament to FUSO's commitment to meeting diverse lighting needs across various industries.

Product Parameter (Specification) of 200W Customized LED driver of UFO HIGH BAY LIGHT

SPECIFICATION

MODEL

VCG-200C-30A

VCG-200C-36A

VCG-200C-42A

VCG-200C-48A

VCG-200C-54A

INPUT

Voltage Range

100-305VAC

Frequency Range

47-63Hz

Power Factor

PF≥0.98/100VAC, PF≥0.95/220VAC, PF≥0.92/277VAC @full load

Efficiency

85.00%

87.00%

88.00%

90.00%

90.50%

AC Current

1.74A/ 115VAC /0.87A/230VAC

Inrush Current

25Amax.@Full Load,230VAC,Cold Start

Circuit Breaker

2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC

Leakagel Current

<1mA / 277VAC

OUTPUT

DC voltage

30VDC

36VDC

42VDC

48VDC

54VDC

Output rated current

24-30VA

30-36VA

36-42VA

40-48A

48-54A

Rated power

200W

Ripple & Noise

120mVp-p

150mVp-p

200mVp-p

300mVp-p

Voltage adjustment range

24-30V

30-36V

36-42V

40-48

48-54

Voltage accuracy

士 2.0%

士 1.0%

Linear adjustment rate

士 1.0%

Load regulation ratio

士 1.5%

Start, rise time

800ms,80ms/115VAC，500ms,50ms/230VAC@full load

Hold time (typ.)

30ms/115VAC，230VAC

PROTECTION

Over Current

95-110%, constant current limit, automatic recovery after abnormal load conditions are removed

Over Voltage Protection

24-30V

30-36V

36-42V

40-48

48-54

Turn off output voltage, restart recovery

Short circuit Protection

Hiccup mode, which can be automatically restored after the abnormal load condition is removed

Over Temperature

Turn off output voltage, restart recovery

ENVIRO
NMENT

Working Temp

Tcase=-40℃…+70℃

Max. Case Temp

Tcase= +90℃

Working Humidity

20-95% RH,No condensation

Storage Temp

-40...+80℃, 10...95% RH,No condensation

Vibration

10-500Hz,2G10min./1cycle,60min.eachalongX,Y,Zaxes

SAFETY &
EMC

Safety Standards

Conform UL8750(type”TL”)，CSA C22.2 No. 250.0-08，BS EN/EN/AS/NZS 61347-1，
BS EN/EN/AS/NZS 61347-2-13，independent，GB19510.1，GB19510.14，
EAC TPTC 004，KC61347-1，IP20

Withstand Voltage

I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC

Insulation impedance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH

Electromagnetic
Compatibility

Conform BS EN/EN55015, BS EN/EN61000-3-2 Class C (@Load>60%) ;
BS EN/EN61000-3-3,GB/T 17743, GB17625.1, EAC TPTC 020

Electromagnetic compatibility
immunity

Conform BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547,Light industry standards
(Surge immunity: wire-to-ground4KV,Line-to-line:2KV), EAC TPTC 020

OTHERS

MTBF

>3000K hrs. MIL-HDBK-217F (25℃)

Dimension

φ145 mm*(H) 30mm

NOTE

1: Please refer to "LED Module Driving Method".
2: Ripple and noise measurement method: Use a 12 "twisted pair, and the terminals must be connected in parallel with 0.1 uf and 47uf capacitors, and measure at 20MHZ bandwidth.
3: Type D only adjustable (through internal potential adjustment).
4: Accuracy: including setting error, linear adjustment rate, and load adjustment rate.
5: Unless otherwise specified, all specifications are measured at 230VAC input, rated load, and 25 °C ambient temperature.
6: The power supply is regarded as a component used in combination with the terminal equipment. Because the EMC is affected by the entire device, the terminal equipment manufacturer needs to re-confirm the EMC of the entire device.

Product Details of 200W Customized LED driver of UFO HIGH BAY LIGHT

Equipment & instruments

Production Process

Product Applications of 200W Customized LED driver of UFO HIGH BAY LIGHT

Product Packaging and Shipping

200W Customized LED driver of UFO HIGH BAY LIGHT has a strong packaging design,it will not be worn or broken during transportation, which can ensure the product reach your hand safely.

Container Loading&Shipment

Installation Precautions:

1. Please follow the correct input voltage range for installation;

2. Make sure AC input line, DC output line, DIM signal line connect correctly.
