Product Description

240W Customized LED driver of UFO HIGH BAY LIGH

The VCG-240C-42A is a 240W customized led searchlight driver designed for high-powered illumination in demanding environments. It features a broad input voltage range of 100-305V, ensuring global adaptability, and a stable output of 36-54V for reliable LED performance. With a high power factor above 0.95, The customized led driver promotes energy efficiency. The magnesium alloy design aids in thermal management, keeping temperatures in check and extending LED lifespan. The VCG-240C-42A is built to endure high temperatures and offers comprehensive protection against power surges, short circuits, and over current. Its IP67 rating makes it waterproof, ideal for outdoor use. The customized led driver supports 0-10V dimming for flexible lighting control. FUSO stands behind the VCG-240C-42A with a 5-year warranty, reflecting our confidence in its quality. This driver meets a host of international safety standards, guaranteeing top-tier quality and safety.

Product Introduction of 240W Customized LED driver of UFO HIGH BAY LIGH

The VCG-240C-42A is a 240W customized led searchlight driver tailored to meet the specific needs of our clients. This product features an extensive input voltage range of 100-305V and an output of 36-54V, ensuring compatibility and stability across different power systems. It boasts a high power factor (PF > 0.95) for energy-efficient performance and is backed by a 5-year warranty, reflecting our commitment to quality.

Designed as a flicker-free, circular constant current LED driver, the VCG-240C-42A includes over-voltage protection, high-temperature resistance, and surge protection, making it a reliable choice for demanding lighting conditions. The customized led driver meets a suite of international safety standards, including CE, RoHS, TUV, UL, ETL, GS, CCC, SAA, PSE, FCC, and CCC, ensuring its safety and performance are globally recognized.

FUSO Company, with an ISO9001:2005 quality management system, leverages 18 years of production and design experience and exports to over 50 countries. We specialize in manufacturing high-power, waterproof LED drivers with IP65 and IP67 ratings. Our business focuses on customizing a variety of LED drivers such as Dimmable LED Drivers, Triac Dimmable LED Drivers, Contact Current LED Drivers, and Constant Voltage LED Drivers, according to customer requirements.

The VCG-240C-42A customized led dirver is widely applied in various lighting solutions, including indoor lighting, downlights, ceiling lights, line lights, table lamps, light strips, underwater lights, underground lights, projection lights, architectural lighting, navigation lights, display lights, advertising lights, mirror lights, film and television lights, and stage lights, among others. This versatility highlights our ability to cater to diverse lighting needs across multiple industries.

Product Parameter (Specification) of 240W Customized LED driver of UFO HIGH BAY LIGH

SPECIFICATION

MODEL

VCG-240C-30A

VCG-240C-36A

VCG-240C-42A

VCG-240C-48A

VCG-240C-54A

INPUT

Voltage Range

100-305VAC

Frequency Range

47-63Hz

Power Factor

PF≥0.98/100VAC, PF≥0.95/220VAC, PF≥0.92/277VAC @full load

Efficiency

85.00%

87.00%

88.00%

90.00%

90.50%

AC Current

2.09A/ 115VAC /1.05A/230VAC

Inrush Current

25Amax.@Full Load,230VAC,Cold Start

Circuit Breaker

2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC

Leakagel Current

<1mA / 277VAC

OUTPUT

DC voltage

30VDC

36VDC

42VDC

48VDC

54VDC

Output rated current

24-30VA

30-36VA

36-42VA

40-48A

48-54A

Rated power

240W

Ripple & Noise

120mVp-p

150mVp-p

200mVp-p

300mVp-p

Voltage adjustment range

24-30V

30-36V

36-42V

40-48

48-54

Voltage accuracy

士 2.0%

士 1.0%

Linear adjustment rate

士 1.0%

Load regulation ratio

士 1.5%

Start, rise time

800ms,80ms/115VAC，500ms,50ms/230VAC@full load

Hold time (typ.)

30ms/115VAC，230VAC

PROTECTION

Over Current

95-110%, constant current limit, automatic recovery after abnormal load conditions are removed

Over Voltage Protection

24-30V

30-36V

36-42V

40-48

48-54

Turn off output voltage, restart recovery

Short circuit Protection

Hiccup mode, which can be automatically restored after the abnormal load condition is removed

Over Temperature

Turn off output voltage, restart recovery

ENVIRO
NMENT

Working Temp

Tcase=-40℃…+70℃

Max. Case Temp

Tcase= +90℃

Working Humidity

20-95% RH,No condensation

Storage Temp

-40...+80℃, 10...95% RH,No condensation

Vibration

10-500Hz,2G10min./1cycle,60min.eachalongX,Y,Zaxes

SAFETY &
EMC

Safety Standards

Conform UL8750(type”TL”)，CSA C22.2 No. 250.0-08，BS EN/EN/AS/NZS 61347-1，
BS EN/EN/AS/NZS 61347-2-13，independent，GB19510.1，GB19510.14，
EAC TPTC 004，KC61347-1，IP20

Withstand Voltage

I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC

Insulation impedance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH

Electromagnetic
Compatibility

Conform BS EN/EN55015, BS EN/EN61000-3-2 Class C (@Load>60%) ;
BS EN/EN61000-3-3,GB/T 17743, GB17625.1, EAC TPTC 020

Electromagnetic compatibility
immunity

Conform BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547,Light industry standards
(Surge immunity: wire-to-ground4KV,Line-to-line:2KV), EAC TPTC 020

OTHERS

MTBF

>3000K hrs. MIL-HDBK-217F (25℃)

Dimension

φ145 mm*(H) 30mm

NOTE

1: Please refer to "LED Module Driving Method".
2: Ripple and noise measurement method: Use a 12 "twisted pair, and the terminals must be connected in parallel with 0.1 uf and 47uf capacitors, and measure at 20MHZ bandwidth.
3: Type D only adjustable (through internal potential adjustment).
4: Accuracy: including setting error, linear adjustment rate, and load adjustment rate.
5: Unless otherwise specified, all specifications are measured at 230VAC input, rated load, and 25 °C ambient temperature.
6: The power supply is regarded as a component used in combination with the terminal equipment. Because the EMC is affected by the entire device, the terminal equipment manufacturer needs to re-confirm the EMC of the entire device.

Product Details of 240W Customized LED driver of UFO HIGH BAY LIGH

Equipment & instruments

Production Process

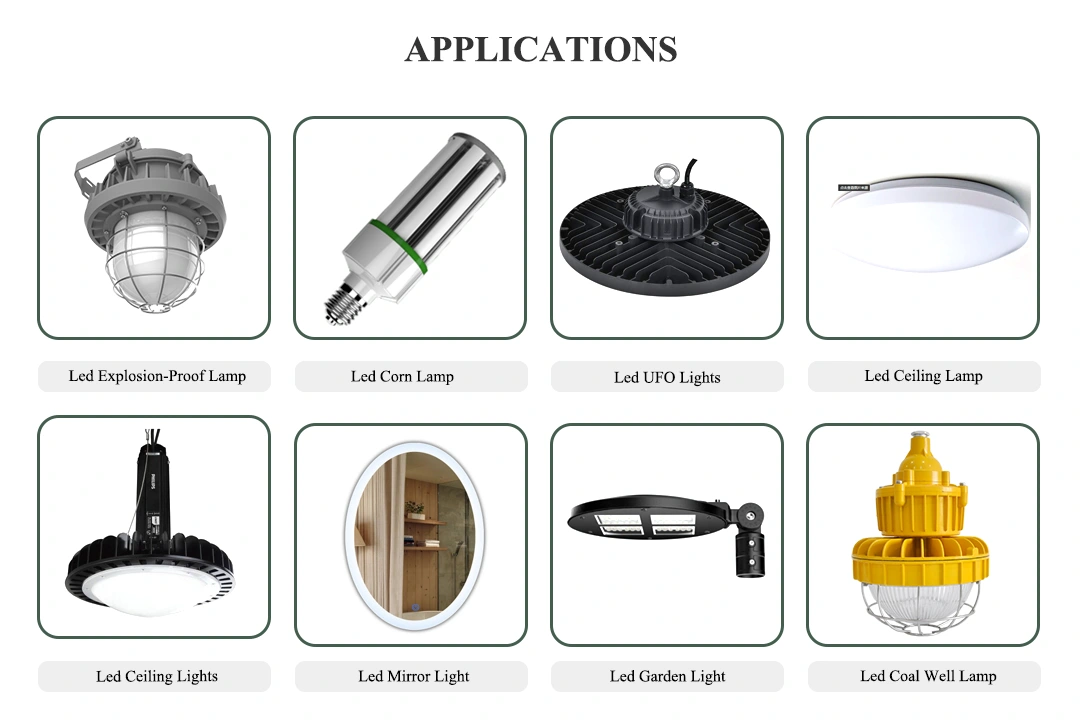

Product Applications of 240W Customized LED driver of UFO HIGH BAY LIGH

Product Packaging and Shipping

240W Customized LED driver of UFO HIGH BAY LIGH has a strong packaging design,it will not be worn or broken during transportation, which can ensure the product reach your hand safely.

Container Loading&Shipment

Installation Precautions:

1. Please follow the correct input voltage range for installation;

2. Make sure AC input line, DC output line, DIM signal line connect correctly.

FAQ

1.Are you a factory or trading company?
We are a factory, we provide ODM& OEM services.
2.What is your main product line is made?
We mainly produceconstant current led driver ,constant voltage led driver, and dimmable led driver

3. You have the ability to do independent research and development?
The core members of our engineering department have 12-18 years in the LED field, who can give more professional and reliable advice and solution and we have the R&D ability to make our products competitive. We also collect regularly customer feedback, products improvement and new product requirement. We also hold monthly new product launches.
4. What certificates you have?
UL, ENEC, TUV, CE, RoHS, CB, SAA, KC, PSE, BIS and CCC certifications etc.
5.What is your production capacity?
5,0000-10,000pcs per month
6.What is the warranty?
Most of our products are 5 years warranty.
7.How about the delivery time ?
Delivery time for sample:3-5days after get your samples request and samples charge.
Delivery time for mass production: 10-18days after order confirmed after receiving buyer's deposit
8.How do you handle defects?
1/1 replacement of defects within the warranty period.
9.How about the Package & Product design?
Based on factory original box,original design on product with neutral laser and label,original package for export carton.If need your mark on products or packing, please tell us, we can do it for you.
